Widely applicable to harsh environments with high fire resistance requirements, large load fluctuations, pollution, and humidity.  It is the most ideal power supply and distribution equipment for important places such as airports, subways, power plants, metallurgy, etc,Hospitals, high-rise buildings, shopping centers, densely populated residential areas, petrochemicals, scientific research, etc.

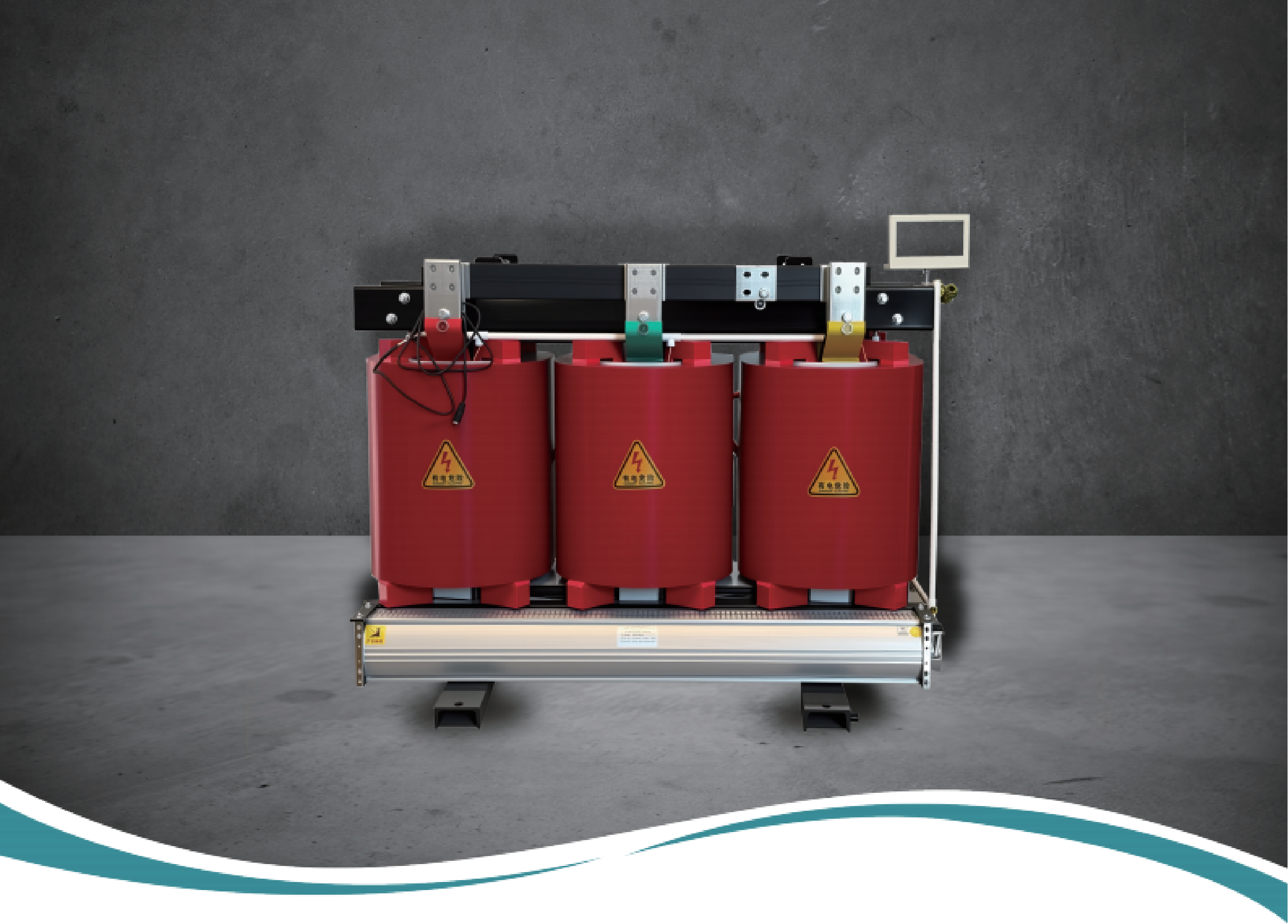

      Dry type transformer is a power transformer that uses air/resin as insulation and cooling medium, without combustible media such as transformer oil. Its core characteristics are fire and explosion prevention, insulation and moisture resistance, small size, and convenient operation and maintenance. It is suitable for high-rise buildings, densely populated areas, basements and other scenarios with strict fire prevention requirements. It is also an important configuration type of box type substation (especially dry-type European box type substation). The following summarizes the core characteristics from the dimensions of structural performance, operating characteristics, installation and operation, and scene adaptation.

1、 Core performance: Fire and explosion prevention, insulation and moisture resistance, safe operation；

2、 Structural design: compact and lightweight, modular, suitable for multiple installation scenarios；

3、 Installation and operation: convenient and efficient, maintenance free, adaptable to complex installation environments；

4、 Cost and Scenario: High initial cost, mainly for small and medium-sized capacity, suitable for high fire prevention requirements scenarios；

Core adaptation scenarios:

Indoor power distribution: high-rise buildings, shopping malls, hotels, hospitals, basement power distribution rooms;

Personnel intensive areas: schools, stations, sports centers, and underground parking garages in residential areas;

Special fire prevention zones: power distribution around chemical industrial parks, gas stations, data centers, and warehouses for flammable and explosive materials;

Clean outdoor scenes: European style transformer substations in the core areas and high-end commercial districts of Malaysian cities (requiring the installation of protective boxes)

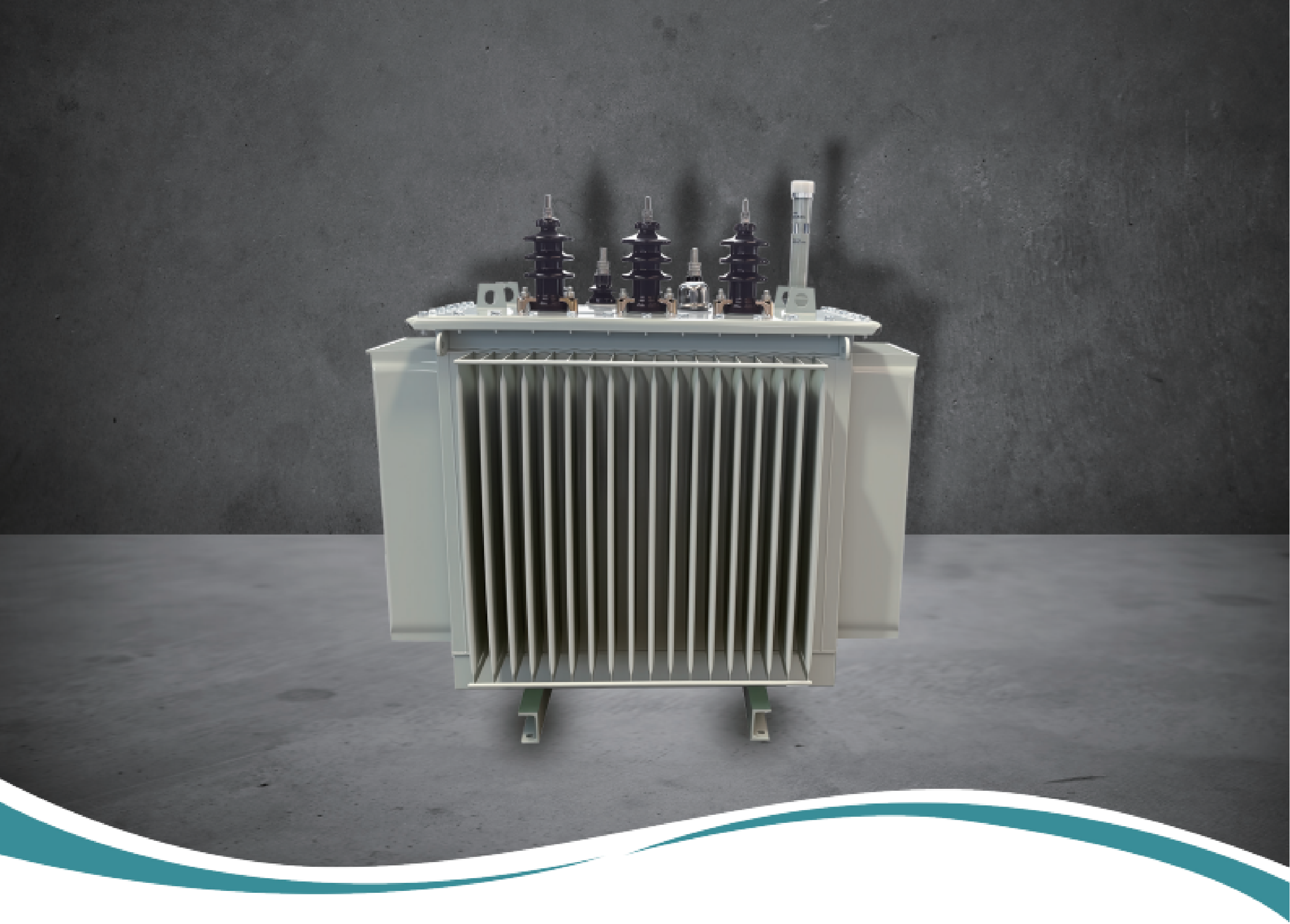

      Oil immersed transformer, with a core made of stacked silicon steel sheets, undergoes annealing treatment to restore its magnetic conductivity to its pre processing level. This product has low no-load loss, low no-load current, low noise, superior mechanical and electrical performance, and is stable and reliable. It is the preferred product for transformer replacement.

        The iron adopts a stepped core joint, which reduces no-load loss and no-load current. The high and low voltage windings adopt a continuous axial oil passage, and U-shaped pads are used between the wire cakes to balance the winding axis and increase the mechanical strength of the winding.

       Oil immersed transformer is a power transformer that uses transformer oil as insulation and cooling medium.

       It is the most widely used type of transformer in the power system, with excellent insulation performance, good heat dissipation effect, strong overload capacity, stable operation and other characteristics.

1、 Core performance: excellent insulation, efficient heat dissipation, strong overload capacity；

2、 Structural design: Mature technology, reliable sealing, suitable for outdoor use；

3、 Installation and operation: easy to operate, low maintenance cost, suitable for engineering applications；

4、 Cost and Scenario: High cost-effectiveness, full capacity coverage, adaptable to multiple scenarios；

       Excellent cost performance ratio: Under the same capacity, the manufacturing cost of oil immersed transformers is 30% to 50% lower than that of dry-type transformers, and there is no need for additional power consumption for heat dissipation. The energy consumption cost for long-term operation is also lower, making it the economical choice for box type substations.

      Wide capacity coverage: The rated capacity can range from 30kVA (small capacity American box transformer) to 3150kVA and above (large capacity European box transformer), meeting the full scenario needs of Malaysia from light load distribution in residential areas to heavy load distribution in industrial parks.

Core adaptation scenarios:

       Outdoor power distribution: European/American box type substations, outdoor pole mounted transformers, floor standing distribution transformers;

       Medium to large capacity power distribution: industrial parks, oilfield terminals, commercial plazas, urban public power distribution;

Distribution in harsh environments: salt spray areas along the coast of Malaysia, high temperature and humidity areas, and industrial areas with less dust.

       Strong localization adaptability: For the tropical climate of Malaysia, 45 # high ignition point transformer oil can be selected (with better temperature resistance and prevention of high-temperature oil leakage), combined with anti condensation and anti UV design, which can operate stably in an environment of -10 ℃~+50 ℃ for a long time.

 Advantages and Limitations: Oil-immersed Transformer vs Dry-type Transformer

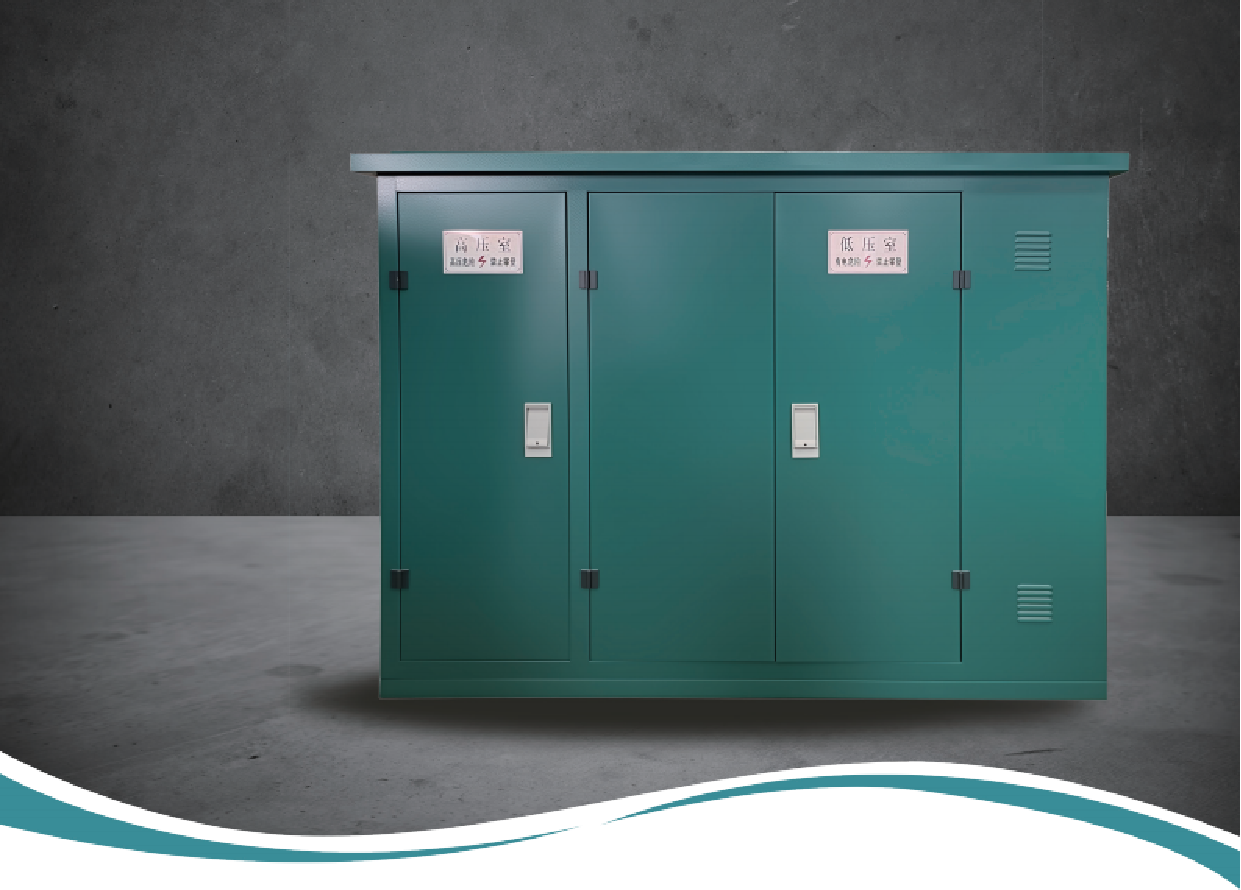

          The entire product features a compact size, simple installation and maintenance, low noise, low power consumption, anti-theft capability, full protection, and strong overload resistance. It is suitable for new residential communities, green belts, parks, stations, hotels, construction sites, airports, and other venues.

1、 Structural design: integrated, compact, occupying minimal space

2、 Electrical performance: Suitable for light load distribution, with simple protection configuration

3、 Installation and operation: convenient construction, strong maintenance free, and lower cost

4、 Usage scenario: Focus on outdoor light load, with clear boundaries for adaptability

Core adaptation scenarios: urban residential communities, villa clusters, street light distribution, small supermarkets, township distribution, temporary construction sites, agricultural irrigation and other small capacity, decentralized, light load outdoor distribution needs.

Scenario limitations: Not suitable for large capacity industrial distribution (such as large industrial and mining areas, industrial parks), high demand ring network distribution systems, high pollution/high salt spray/strong corrosion harsh environments (requiring additional customized protection), and not suitable for scenarios with high requirements for relay protection and intelligent control.

       Suitable for urban public power distribution, street light distribution, industrial and mining enterprises, urban buildings, residential communities, oil field docks, hotels, parks, and construction sites, etc., it can achieve ring network or terminal power supply mode.

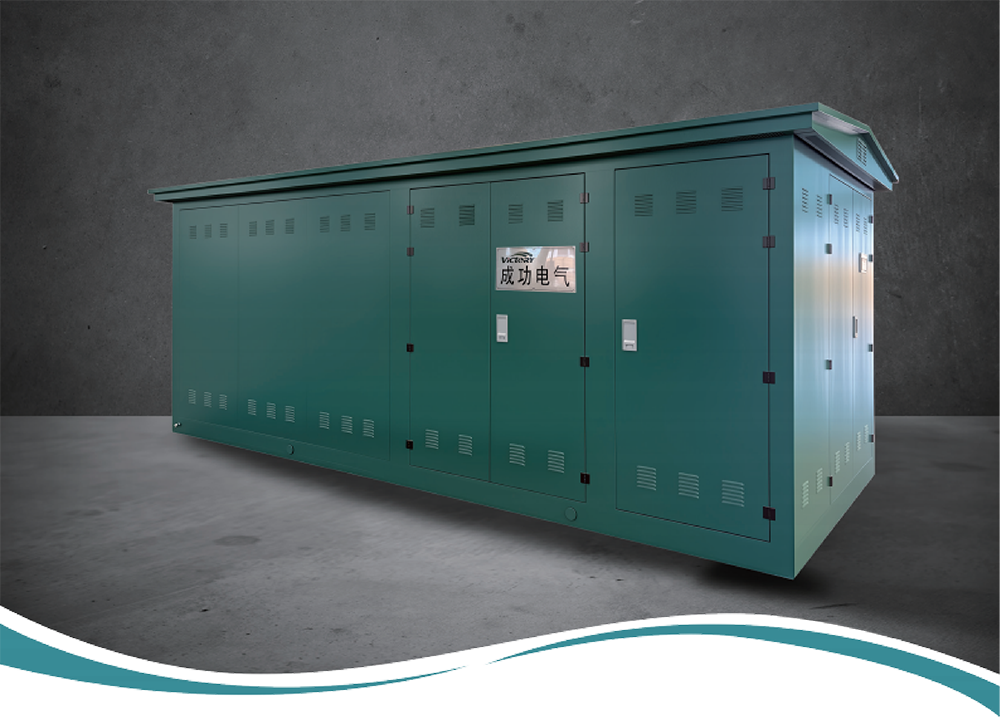

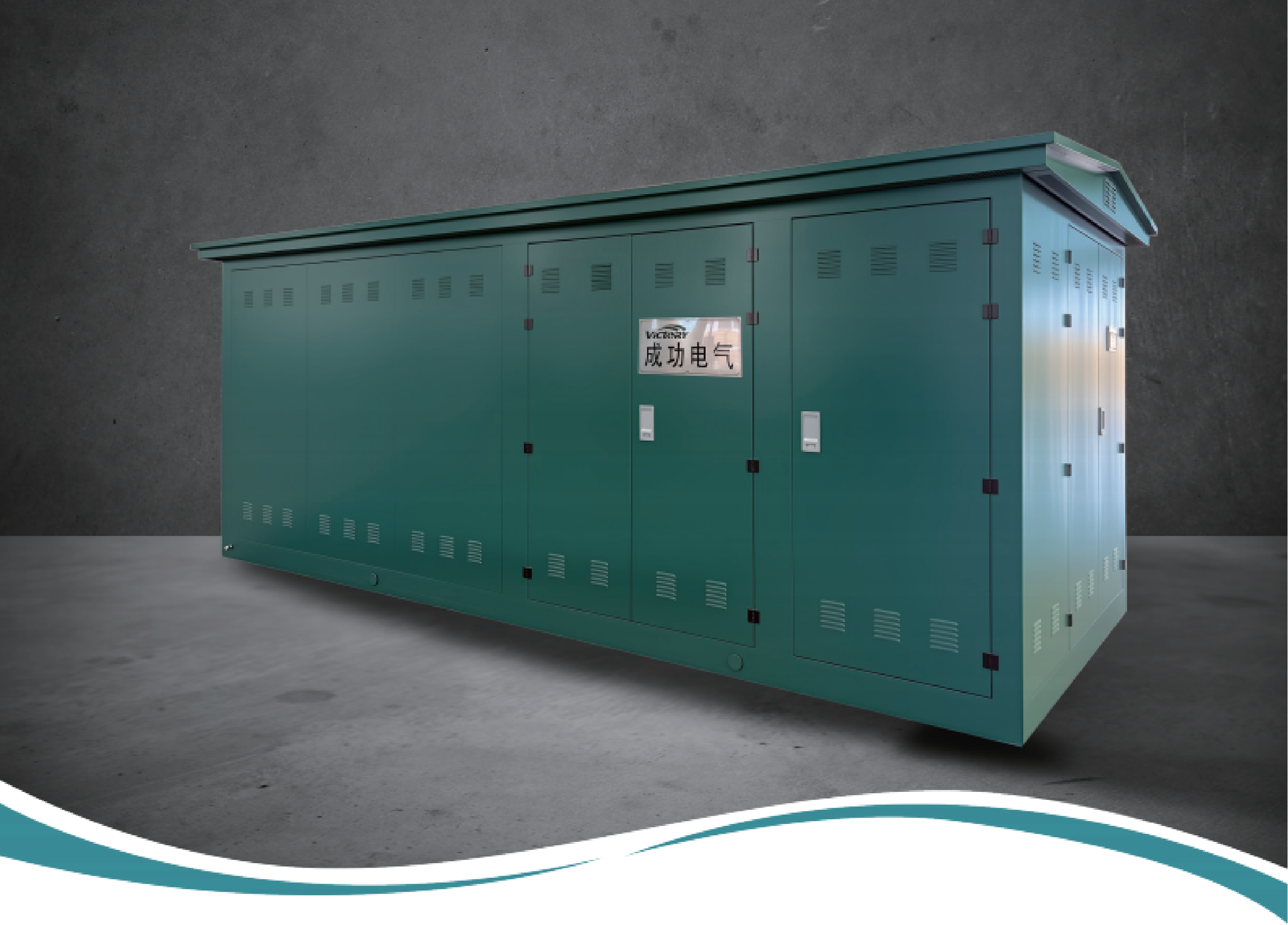

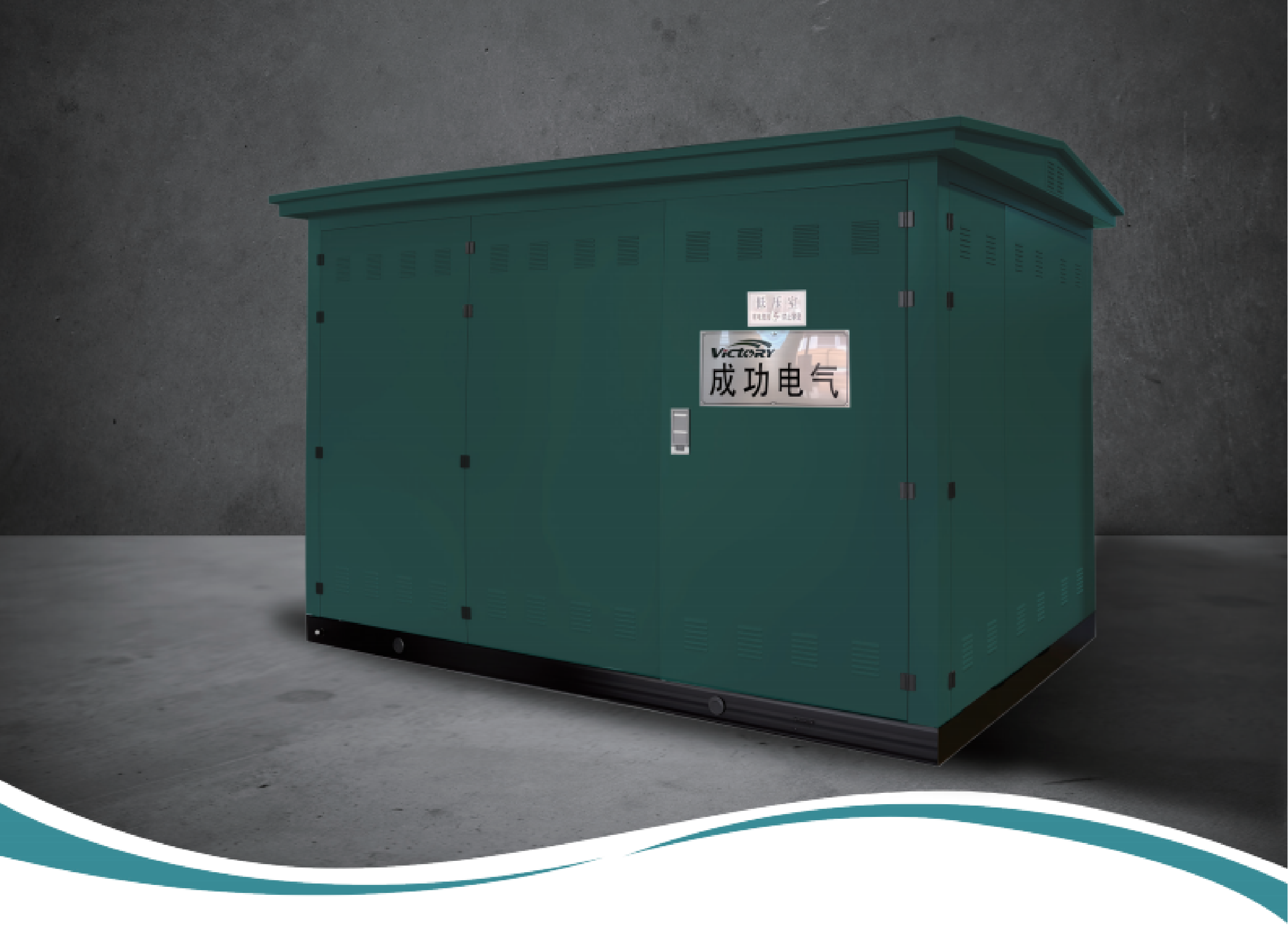

        The European style box type substation is a pre installed distribution equipment with independent separation of high voltage cabinet, low voltage cabinet, and transformer three compartments. Its core features are modular structure, standardized configuration, and comprehensive performance, suitable for full capacity and multi scenario distribution needs, especially meeting high requirements for power supply reliability, protection integrity, and expansion flexibility in medium and large capacity industrial distribution, urban public distribution, and other scenarios. It fully complies with the TNB distribution network specifications in Malaysia and the complex outdoor working conditions in Southeast Asia. The following are its core features:

1. Structural Design: Modular Separation, Safe and Standardized；

2. Electrical Performance: Full Capacity Coverage, Complete Protection and Reliable Power Supply；

3. Installation and Operation: Standardized Construction, Convenient Expansion and Low Long-term Cost；

4. Application Scenarios: Full-scenario Adaptation, No Restrictions on Light/Heavy Load；

The European type box substation is the mainstream type of pre-installed substation in Malaysia, and its core adaptation scenarios cover all types of outdoor/indoor distribution needs:

• Urban public distribution: urban road network, park, commercial plaza, high-rise building distribution;

• Industrial and mining enterprise distribution: industrial park, factory workshop, oil field, wharf, construction site heavy load distribution;

• Municipal infrastructure: street lamp power supply, water supply and drainage system, traffic signal power supply;

• Residential area distribution: large and medium-sized residential quarters, apartment buildings with high requirements for power supply reliability;

•

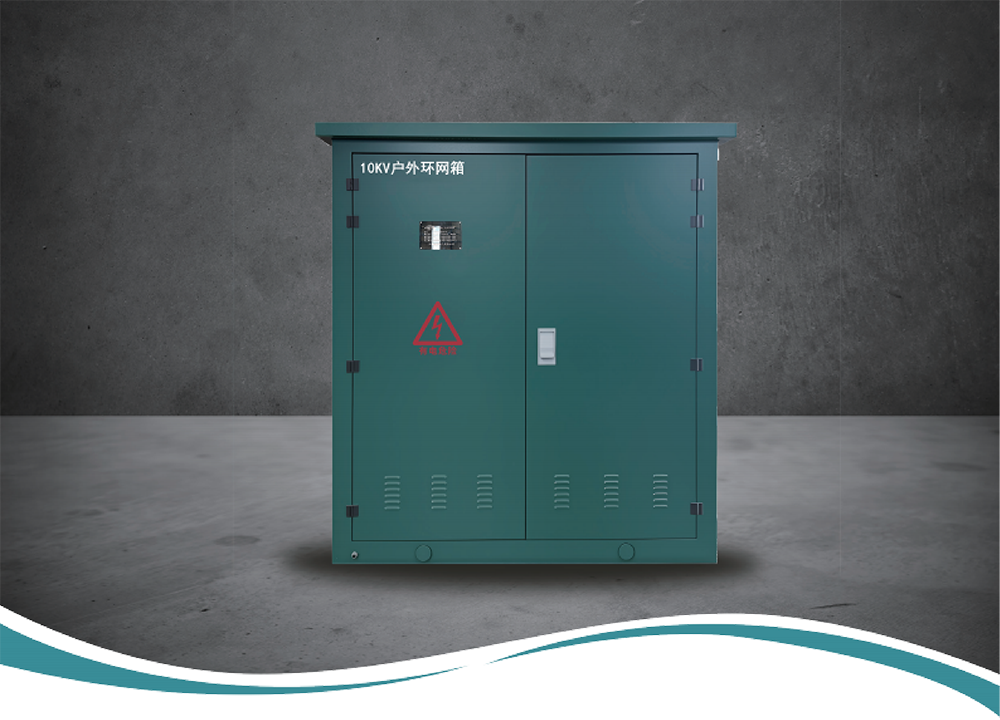

       The 10KV outdoor ring main unit is a new generation of automated power distribution equipment developed by our company based on the practical development needs of power system distribution automation. It features all the functions required for distribution automation, including system monitoring, system control, and system communication, making it an ideal modern switching device.

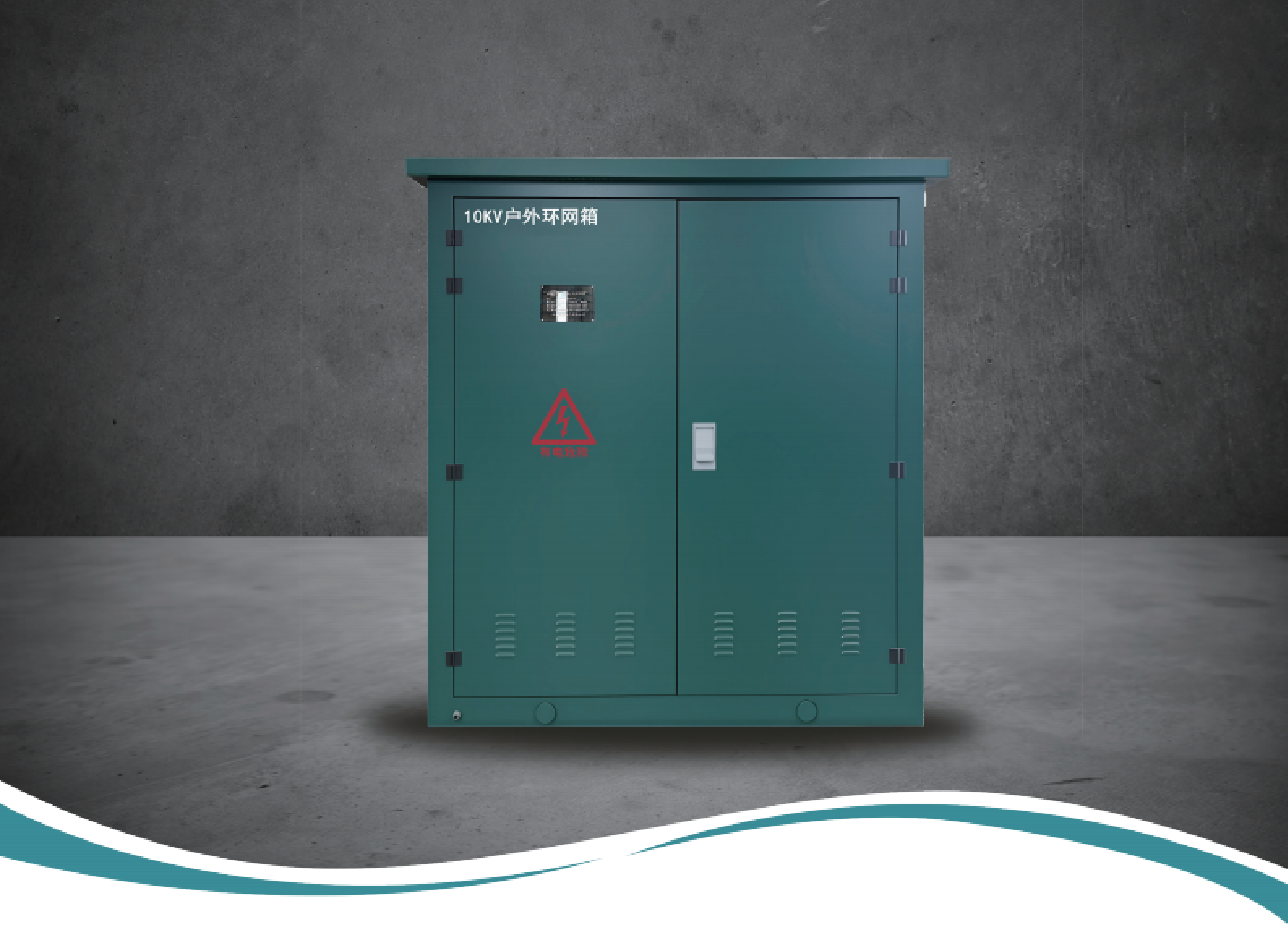

      Outdoor ring net cage (also known as outdoor box type ring net cabinet/switchgear) is a complete set of equipment that integrates high-voltage switchgear, protection and monitoring units, and is dedicated to outdoor cable ring network power supply. Its core features revolve around strong environmental tolerance, compact safety, minimal maintenance, easy deployment, and intelligence. The specific details are as follows:

1.Fully sealed and insulated, high protection and extreme resistance；

2.Compact structure, flexible installation, low infrastructure cost；

3.High reliability, long maintenance free cycle, fast fault isolation；

4.Strong adaptation to intelligence and automation；

5.Outstanding safety performance；

  This switchgear does not require civil construction and occupies a small area. Its configuration is very flexible and the power supply method is more reliable. The construction, installation,and commissioning time are greatly reduced, and the overall cost is lowered.

      The outdoor intelligent box type switchgear (XGW-12/HWX-12, etc.) is a new generation of distribution network core equipment that integrates primary and secondary equipment, is fully sealed outdoors, highly intelligent, and can be unmanned. Its core features are strong environmental tolerance, primary and secondary integration, three remote+self-healing, modular maintenance free, safe and reliable, and rapid deployment.

1. Primary and secondary deep integration, high level of intelligence (core)；

2.Fully sealed and insulated, with strong resistance to outdoor environments；

3.Modular and compact, flexible deployment, and fast construction；

4.High reliability, long cycle maintenance free；

5.Safe and environmentally friendly, widely applicable in various scenarios；

The core difference from ordinary outdoor  cages：
